SHENYANG(SMTCL) Vertical Machining Center VMC850B

Product description:

VMC B series combines with market request, long term manufacturing experience and hi-tech R&D. For a long time we focus on manufacturing ability and quality control to provide a better machine tools.

B series can offer many opinions to satisfy various different fields customers, working table range is from 650x430mm to 2200x800mm, X axis travel range is from 580mm to 2100mm.


Product Detail

Product Tags

Specification

Items

Unit

VMC 850B

Table

Table size

mm

1000×500

Slot size

mm

18×5

Max. Loading

kg

600

Working range

X axis travel

mm

850

Y axis travel

mm

560

Z axis travel

mm

650

Max. distance between spindle nose to working table

mm

800

Min.distance between spindle nose to working table

mm

150

Spindle

Tapper

-

BT40

Spindle speed

r/min

10000

Main motor torque

N.m

52.5

Main motor power

kW

11/15

Feeding

Feeding speed

mm/min

1-20000

Rapid feeding x/y/z

m/min

45/45/30

Magazine

Magazine type

-

ATC

Magazine capacity

piece

24

Max.tooling length

mm

300

Max.tooling weight

kg

7

Max.tooling

diameter

Full

mm

Φ80

Near

mm

150

Tooling change time

s

2.5

Positioning

X axis

mm

0.010

Y axis

mm

0.008

Z axis

mm

0.010

Repeatability

X axis

mm

0.008

Y axis

mm

0.006

Z axis

mm

0.008

General electricity capacity

kVA

25

Air pressure

Mpa

0.5-0.7

Machine dimensions and weight

Dimensions(L×W×H)

mm

3960× 2450× 2920

Weight

kg

5900

Controller

-

FANUC

Characteristic

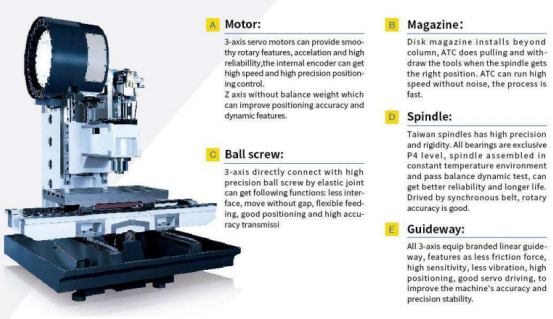

SHENYANG(SMTCL) VMC B Series Vertical Machining Center (1)

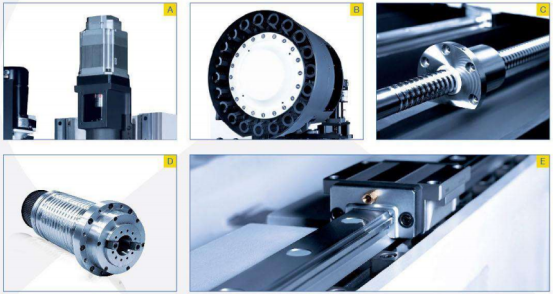

SHENYANG(SMTCL) VMC B Series Vertical Machining Center (2)

Samples

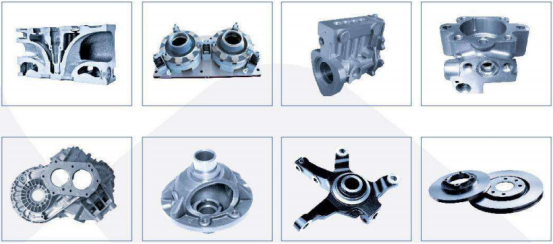

SHENYANG(SMTCL) VMC B Series Vertical Machining Center (3)

Typical cases

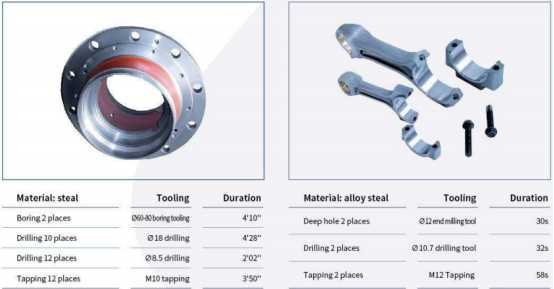

SHENYANG(SMTCL) VMC B Series Vertical Machining Center (4)
