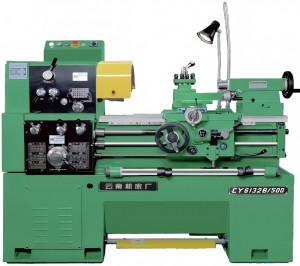

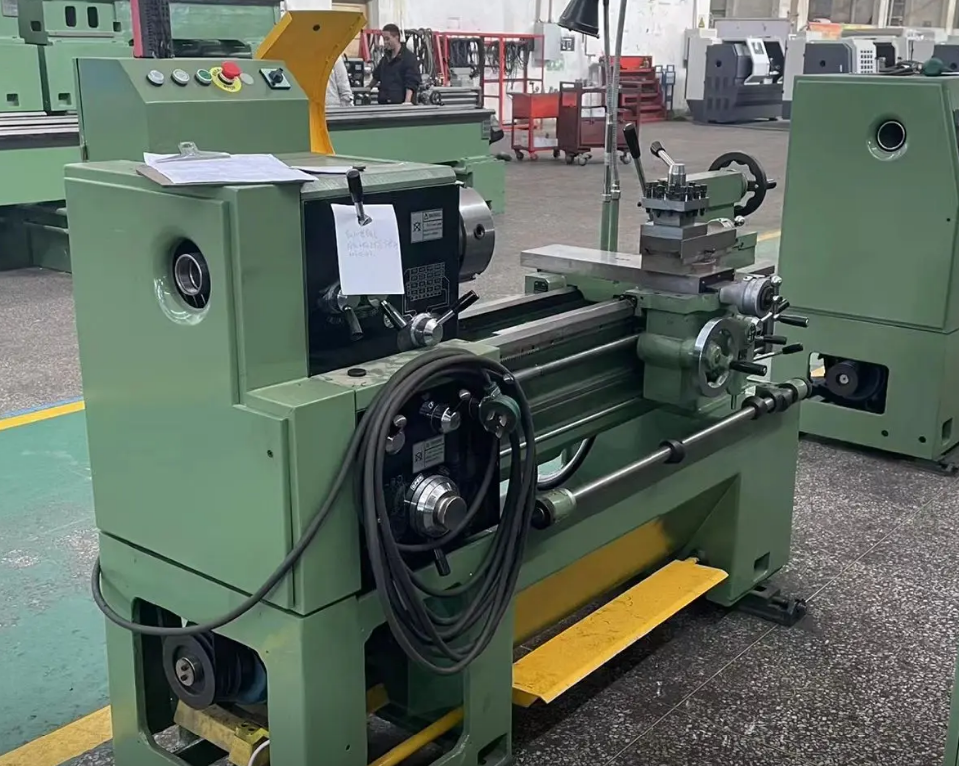

Precision Conventional Cy6132b Mini Lathe for Metalworking with CE
|
ITEM
|
UNIT
|
CY6132B
|
CY6232B
|
|
|
Maximum swing over bed
|
mm
|
φ410
|
||
|
maximum travel of lower toolpost
|
mm
|
φ258
|
||
|
maximum workpiece length
|
mm
|
500/750/1000/1500
|
750/1000/1500
|
|
|
maximumswing diameter over gap
|
mm
|
——
|
φ580
|
|
|
spindle nose type and code
|
D6
|
|||
|

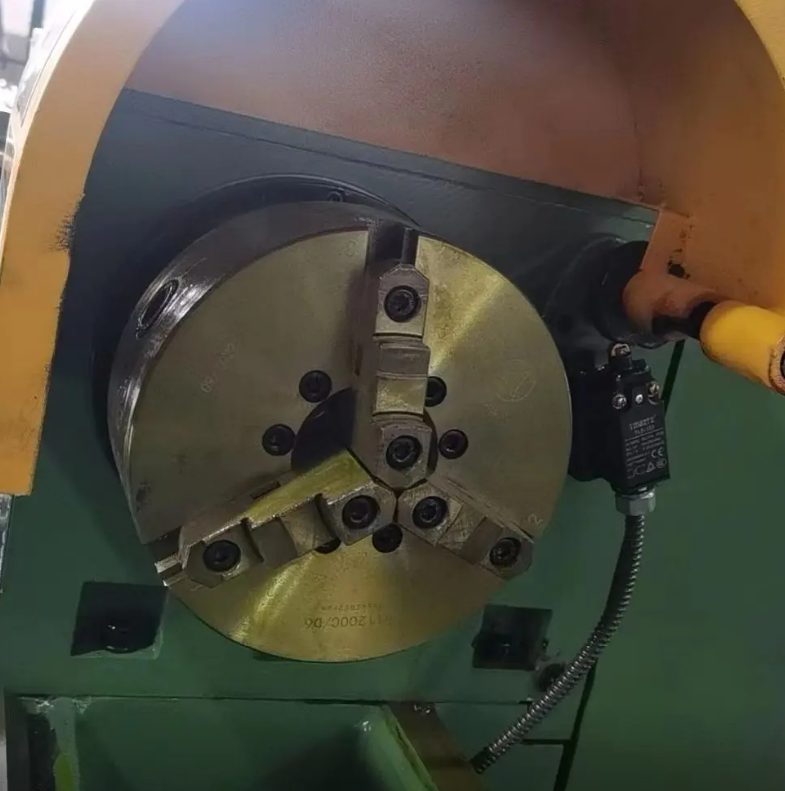

Standard 3-Jaw Chuck
|
K11200C/D6
|
|||
|
Spindle bore diameter
|
mm
|
φ52
|
||
|
Taper of spindle bore
|
MT6
|
|||
|

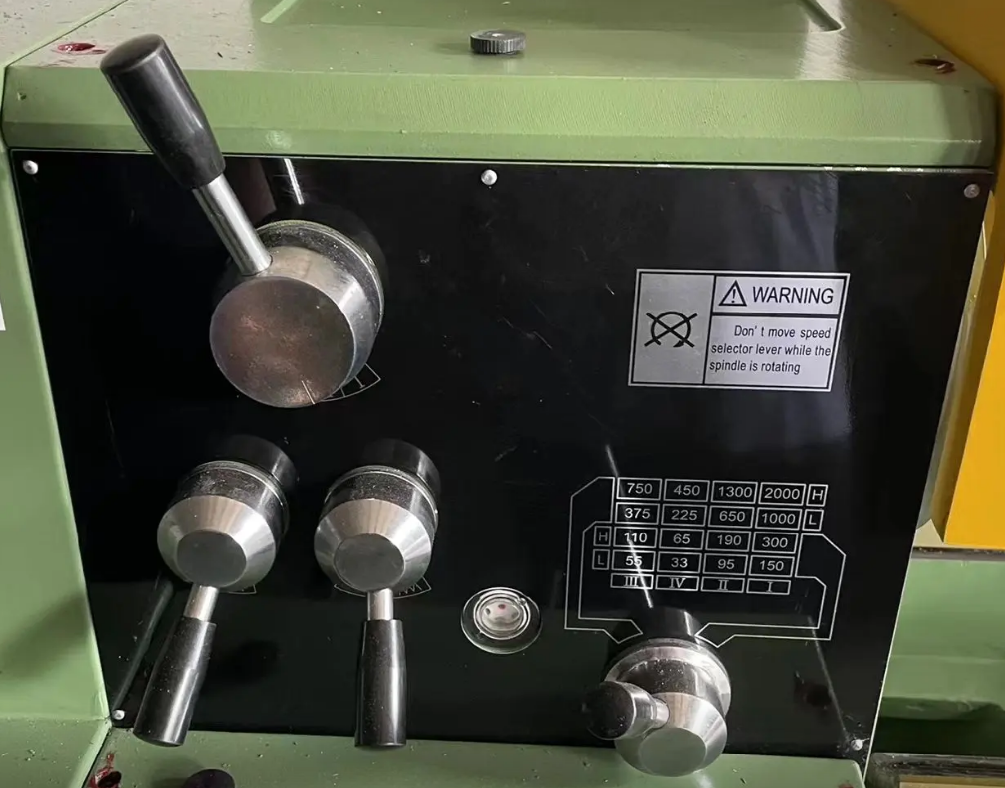

spindle speeds range
|
r/min
|
33~2000(16Speeds)
|
||
|
Z-axis feeds
|
mm/r
|
0.087~1.22
|
||
|
X-axis feeds
|
mm/r
|
0.066~0.931
|
||
|
Metric threads
|
mm
|
0.5~7(22kinds)
|
||
|
inch threads
|
tpi
|
4~56 (36 kinds)
|
||
|
module threads
|
mm
|
0.5~3.5(20kinds)
|
||
|
diametric pitch threads
|
Dp
|
8~5 6 ( 2 7 kinds)
|
||
|
Main motor power
|
kW
|
3/4.5(Two-speed motor)
|
||
|
Maximum Spindle Output Torque (Rated for 30 minutes)
|
Nm
|
390
|
||
|
maximum travel of lower toolpost
|
mm
|
220
|
||
|
maximum travel of upper toolpost
|
mm
|
100
|
||
|
diameter of quill
|
mm
|
φ52
|
||
|
travel of quill
|
mm
|
100
|
||
|
taper of quill
|
Mohs
|
4#
|
||
|
Tool size
|
mm
|
20×20
|
||
|
Lathe dimension
|
LXW×H
|
mm
|
1770/2020/2280/2750×1150×1700
|
2020/2280/2750×1150×1700
|
|
net weight/gross weight
|
kg
|
1200/17001300/18001400/20001700/2500
|
1300/18001400/20001700/2500
|
|
