NINGJIANG CNC Gear Hobbing Machine YK3610Ⅲ

Product description:

Ningjiang is the best quality gear hobbing machine producer in China. This type machine is suitable for spur gear, helix gear, worm and spline.


Product Detail

Product Tags

Item Unit YK3610Ⅲ
Max. working diameter mm Φ100
Max. working module mm 3
Workpiece spindle rpm r/min 1000
Hob spindle rpm r/min 6000
Hob shifting length mm 100
Z-Slide travel mm 220
Hob head swing angle ° ±45
Min. tooth number - 3
Max. hob dia. X length mm Φ80×110
Total power KVA 30
Over all dimension (L/W/H) mm 3450×3150×2550
Machine weight T 6

Characteristic

● FANUC Oi-MF Control
● 7 servo axes with B, C, X, Z-axes been simultaneously controlled.
● Built-in motor for direct drive of B, C axes. Full-closed-loop control.
● Servo control hob shifting (Y-axis). Optional "micro-shifting".
● Self-developed communication programming software make the machine operation more easy.

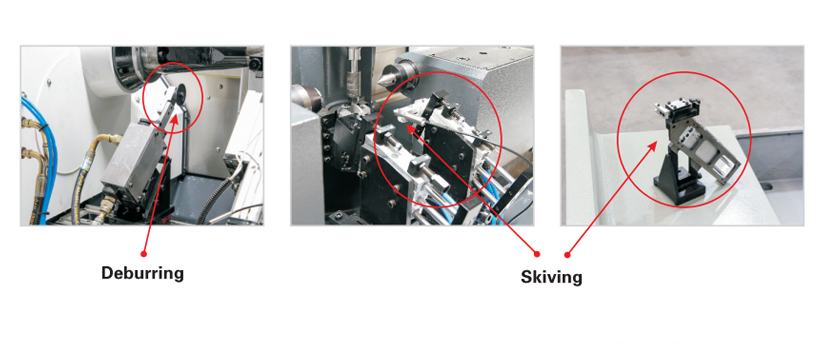

● Optional skiving accessory for 2nd hobbing of hardened gear.

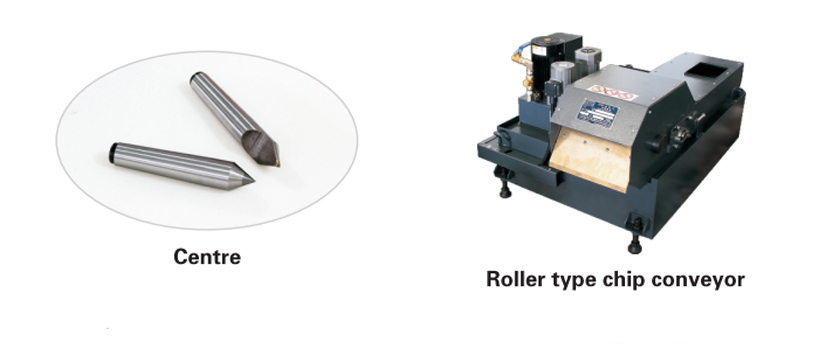

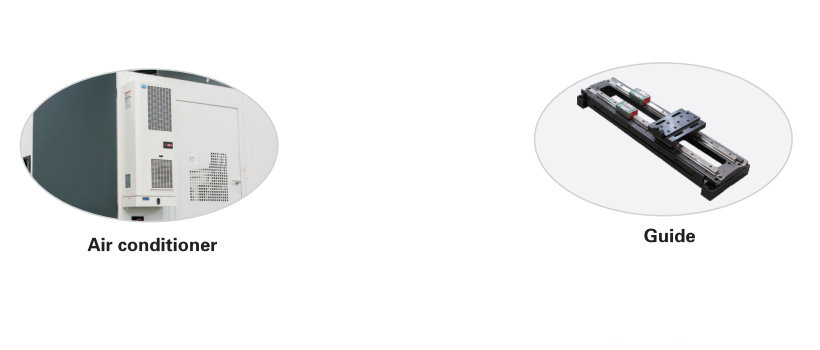

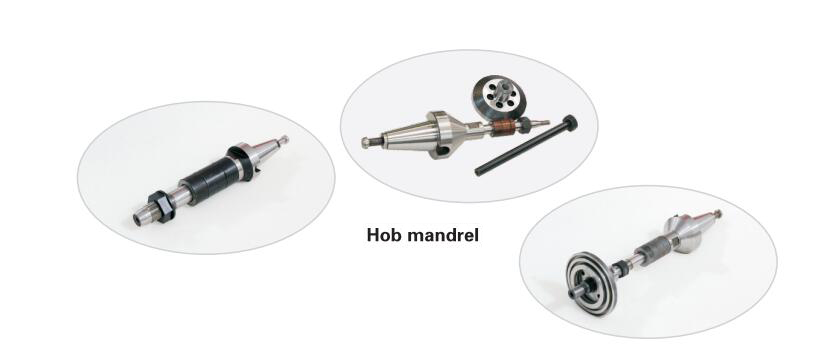

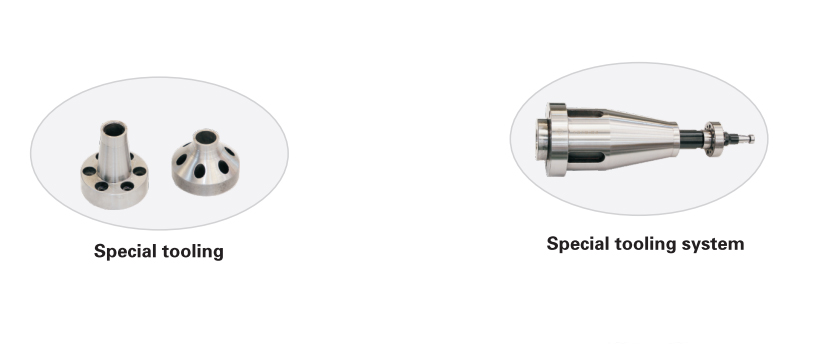

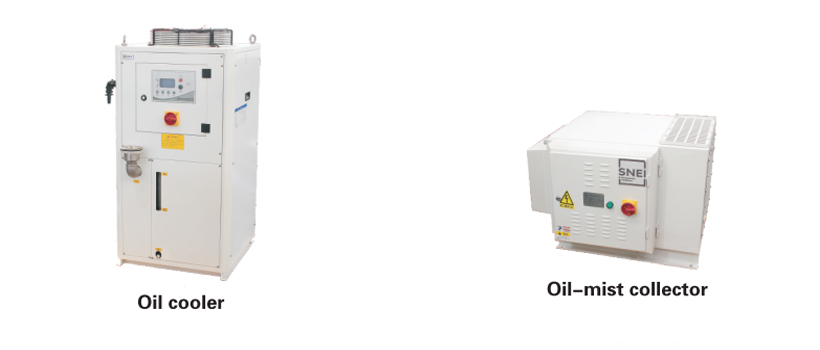

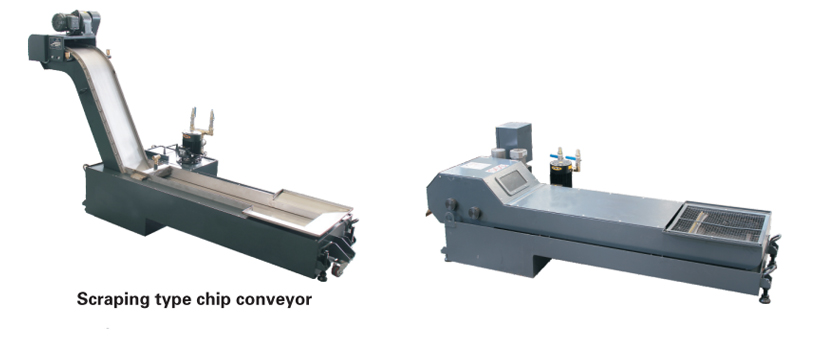

Gear hobbing machine accessories

7.27 1 7.27 2 7.27 3 7.27 4 7.27 5 7.27 6 7.27 7 7.27 8
