XUTIAN Long Axis Vertical Machining Center-Table Moving

Product description:

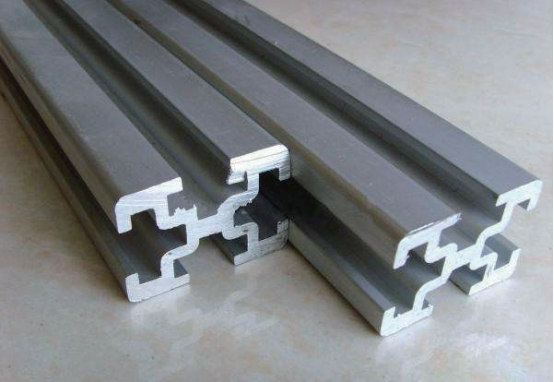

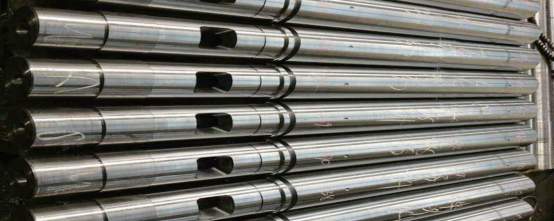

·This series of vertical strip machining centers integrates drilling, tapping and milling

·High and low gear double speed gearbox and oversized parts can meet the needs of heavy processing

·Splash proof sheet metal protection design, safe, reliable and environmentally friendly

Send email to us Download as PDF

Product Detail

Product Tags

Specification

Item		Unit	TKC2070	TKC2570	TKC3070	TKC4070
Workbench	Table size(L×W)	mm	2000×700	2500×700	3000×700	4000×700
	Maximum load of workbench	kg	1500	2500	3500	4500
	T- slot (slot number – slot width×Pitch)	mm	5-22×120	5-22×120	5-22×120	5-22×120
Coordinate range	Left and right travel of workbench (X- -axis)	mm	2000	2500	3000	4000
	Front and rear stroke of column (Y-axis)	mm	700	700	700	700
	Up and down travel of spindle box (Z-axis)	mm	600	600	600	600
	Distance from spindle end face toworktable	mm	100~700	100~700	100~700	100~700
Spindle	Spindle type	/	Belt drive
	Maximum spindle speed	rpm	8000	8000	8000	8000
	Taper of spindle hole	/	BT40/7:24	BT40/7:24	BT40/7:24	BT40/7:24
	Spindle outer diameter	mm	Φ150	Φ150	Φ150	Φ150
Feed rate	Fast moving speed (X/Y/Z-axis)	m/min	20/20/15	20/20/15	20/20/15	20/20/15
Feed rate	Cutting feed rate	m/min	1-10	1-10	1-10	1-10
Motor power	Spindle motor power	kW	7.5/11	7.5/11	7.5/11	7.5/11
	Feed motor torque (X/Y/Z)	mm	28/28/28B	28/28/28B	28/28/28B	28/28/28B
	Cooling pump motor	mm	0.55	0.55	0.55	0.55
Accuracy	Positioning accuracy	mm	±0.012/300	±0.012/300	±0.015/300	±0.015/300
Accuracy	Repeat positioning accuracy	mm	±0.008/300	±0.008/300	±0.008/300	±0.008/300
System	CNC system	/	SYNTEC
Power Supply	Power Supply Voltage	KVA	≥25	≥30	≥35	≥40
Air Pressure	Air demand	kg/cm²	≥6	≥6	≥6	≥6
Air Pressure	Air supply flow	m³/min	≥0.5	≥0.5	≥0.5	≥0.5
Tool magazine	Tool magazine form	/	Disk manipulator tool magazine
	Magazine capacity	pcs	24	24	24	24
	Average tool change time (tool-tool)	sec	2.5	2.5	2.5	2.5
Machine Size	Coverage area (L×W×H)	mm	5900×3100×3100	6900×3100×3100	7900×3100×3100	9900×3100×3100
Machine Size	Weight (About)	kg	10500	12000	13000	16500
