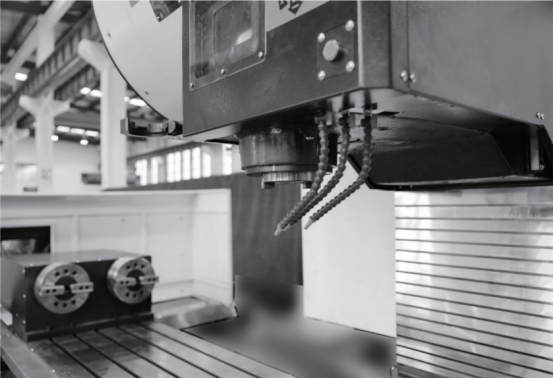

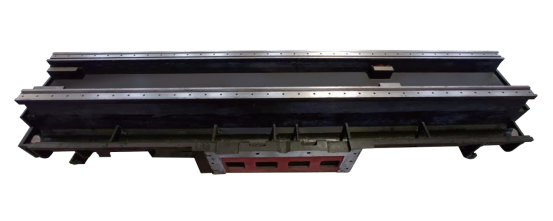

XUTIAN Long Axis Vertical Machining Center-Colunm Moving

Item

Unit

TKC5070A

TKC6070A

TKC8070A

TKC10070A

Workbench

Table size(L×W)

mm

5000×700

6000×700

8000×700

10000×700

Maximum load of workbench

kg

5000

6000

8000

10000

T- slot (slot number – slot width×Pitch)

mm

5-22×120

5-22×120

5-22×120

5-22×120

Coordinate range

Left and right travel of workbench (X- -axis)

mm

5000

6000

8000

10000

Front and rear stroke of column (Y-axis)

mm

700

700

700

700

Up and down travel of spindle box (Z-axis)

mm

600

600

600

600

Distance from spindle end face toworktable

mm

200-800

200-800

200-800

200-800

Spindle

Spindle type

/

Belt drive

Belt drive

Belt drive

Belt drive

Maximum spindle speed

rpm

6000

6000

6000

6000

Taper of spindle hole

/

BT50

BT50

BT50

BT50

Spindle outer diameter

mm

Φ190

Φ190

Φ190

Φ190

Feed rate

Fast moving speed (X/Y/Z-axis)

m/min

40/20/15

40/20/15

40/20/15

40/20/15

Cutting feed rate

m/min

1-10

1-10

1-10

1-10

Motor power

Spindle motor power

kW

15/18.5

15/18.5

15/18.5

15/18.5

Feed motor torque (X/Y/Z)

mm

35/28/28B

35/28/28B

35/28/28B

35/28/28B

Cooling pump motor

mm

0.55

0.55

0.55

0.55

Accuracy

Positioning accuracy

mm

±0.015/300

±0.015/300

±0.026/300

±0.026/300

Repeat positioning accuracy

mm

±0.01/300

±0.01/300

±0.015/300

±0.015/300

System

CNC system

/

SYNTEC

SYNTEC

SYNTEC

SYNTEC

Power Supply

Power Supply Voltage

KVA

≥35

≥40

≥45

≥50

Air Pressure

Air demand

kg/cm²

≥6

≥6

≥6

≥6

Air supply flow

m³/min

≥0.5

≥0.5

≥0.5

≥0.5

Tool magazine

Tool magazine form

/

Disk manipulator tool magazine

Magazine capacity

pcs

24

24

24

24

Average tool change time (tool-tool)

Sec

2.5

2.5

2.5

2.5

Machine Size

Coverage area (L×W×H)

mm

8700×3400×3100

9700×3400×3100

10700×3400×3100

13700×3400×3100

Weight (About)

kg

16500

18000

20000

22500
