TIANSHUI SPARK Heavy Duty Horizontal Lathe CWA6185 CWA6285

Product description:

The using range of this series of machines are wide,it can finely meet the requirements of every kind of industry,machining such as external cylinder, internal hole , slot, face and threads,it also can meet the requirements of drilling.boring broaching oil groove, keyway and so on,it is an excellent mechanical equipment for turning axial, iscal.sleeve and special type surfaces workpieces.


Product Detail

Product Tags

Specification

Item

CWA6185

CWA6285

Swing over bed

mm

850

Swing over gap

mm

1150

Swing over carriage

mm

510

Maximun turning length

mm

1500-16000

Maximum weight of workpiece between centers

kg

4000

Width of the bed

mm

600

Spindle noses No.

ISO

A2-11

Diameter of spindle front bearing

mm

160

Diameter of spindle hole

-

100

Taper hole of spindle

-

Metric No.120

Number of spindle speeds

-

Manual 4-speed stepless

Range of spindle speeds

R/min

5-630

Main motor power

kw

AC15

Rapid travelling speed of motor power

kw

1.1

Section of tool shank

mm

32×32

Swing angle of tool post

-

±90°

Travel of tool post

mm

250

Travel of cross slide

mm

600

Rapid travelling speed of tool post

mm/min

900

Rapid travelling speed of transverse

mm/min

1800

Rapid travelling speed of longitudinal

mm/min

3640

Metric Threads number and range

mm

56, 1-120

Inch threads number and range

T.P.I

56,30~1/4”

Module threads number and range

mm

56,0.5-60

Diameter pitch threads number and range

D.P.

56,60-0.5

Longitudinal number and range of feeds

m/rev

64,0.08-9.6

Transverse number and range of feeds

m/rev

64,0.04-4.8

longitudinal tool post number and range of feeds

m/rev

64,0.02-2.4

Diameter of Tailstock quill

mm

120

Taper hole of tailstock quill

Morse No.6

Travel of tailstock quill

mm

250

Weight of the lathe with 3m b.c.

kg

6800

Additional weight par 1 m b.c.

kg

600

Machine overall dimension (Length x width x height) (3m)

mm

5150x 1500x 1500

Characteristic

Famous AC inverter variable speed device has been selected by the machine, the main driving has been driven by AC motor,4 step  infinitely variable can be realized by sliding the gear.excellent performances of torque and power has been equipped.The operating system of the machine has been controlled by electric,hydraulic, mechanical mechanism,the carriage has functions of rapid traverse and combinating feed, easy for operating.

Standard Configuration

•4-jaw chuckφ800mm
•Center
•Lighting unit
•Cooling unit
•Special tools

Optional Configuration

•3.4-jaw chuck φ320mm,φ800mm,φ1000mm
•Steady rests φ40~φ350mm,φ50~φ470mm,φ100~φ520mm
•Roller supporting device φ180~φ520mm
•Follower rest φ30~φ120mm
•Taper turning device
•Boring device

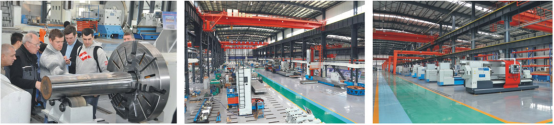

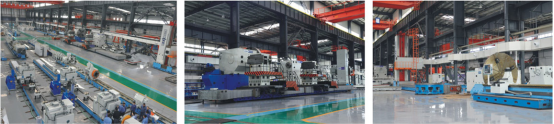

Factory Tour
