TIANSHUI SPARK Heavy Duty Horizontal Lathe CW61100E CW62100E

Product description:

This series of machine tools is suitable for paper, textile, rubber, energy and other industries. It is suitable for the processing requirements of large and very large cylinder, disc and rubber roller tired parts, and can also turn a variety of threads to meet the process requirements of drilling and boring, and has a good performance to price ratio compared with similar functional heavy products.


Product Detail

Product Tags

Specification

Item

CW61100E

CW62100E

Max.swing over bed

mm

1000

Max.swing over gap

mm

1250

Max.Swing over carriage

mm

650

Maximum turning length

mm

1500~16000

Maximum weight of workpiece between centers

kg

6000、8000、10000

Width of the bed

mm

755

Spindle noses No.

ISO

A2-15

Diameter of spindle front bearing

mm

200、220

Spindle hole

mm

130、100

Taper hole of spindle

-

Metric No.140,No.120

Number of spindle speeds

-

Manual operating 21 steps

Range of spindle speeds

r/min

3.15~315

Main motor power

kW

AC22

Section of tool shank

mm

45×45

Swing angle of tool post

-

±90°

Travel of transverse tool post

mm

-

Travel of longitudinal tool post

mm

300

Travel of cross slide

mm

520

Metric threads number and range

mm

56,1~120

Inch threads number and range

T.P.1.

56,30~1/4

Module threads number and range

mm

56,0.5~60

Diametral pitch thread number and range

D.P.

56,60~0.5

Diameter of Tailstock quill

mm

160,200

Taper hole of tailstock quill

-

Metric No.80,Morse No.6

Travel of tailstock quill

mm

300

Weight of the lathe with 3m

kg

12000

Additional weight per 1m

kg

800

Machine overall dimension

(length x width x height)(3m)

 mm

6100x1900x2000

Characteristic

The machine tool is mainly responsible for turning large rotary diameter workpieces and is capable of turning end faces, external circles, internal holes, tapered surfaces and metric, imperial, module and diameter threads of various parts, as well as drilling and boring process requirements. The machine spindle adopts a three-support structure, its brake is hydraulically controlled, the brake is sensitive and reliable, and the button can be used to change the first level of speed without stopping. The bed is of n-shaped rib, sandwich structure, suitable width of guide rails, good rigidity, strong vibration resistance and convenient chip removal. The machine is also equipped with a separate oil pump for forced lubrication, as well as a skid plate, tool holder and bed saddle that can move separately and quickly, terminal insurance, fixed-range cutting, tailstock can be manually or motorized, the machine has the characteristics of strong rigidity, high efficiency, safety and reliability, easy operation and beautiful shape.

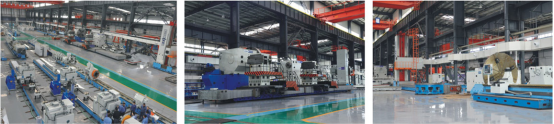

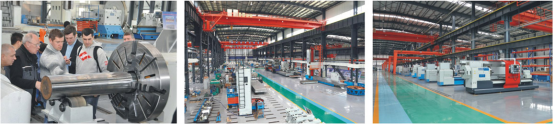

Factory Tour
