BOYU Cold Heading Forming Machine for Nut Making 11B-17B 19B-60B

Product description:

Multi station nut cold heading machine is a kind of high efficiency and automatic specialty in metal cold extrusion forming machinery Chemical machinery and equipment, its own superior cold heading machine forming technology and advanced processing characteristics make it can be widely used. It is used in various fields of national economy, such as fastener, hardware and special-shaped non-standard parts.


Product Detail

Product Tags

product-description2
product-description3
product-description4
product-description5

●Safety protection device - machine failure automatically stops
●Fault Detector - Automatic alarm for abnormal operation of the machine
●Temperature sensor - Monitoring the sliding bearing and crankshaft operating temperature at all times
●Counter - Statistics on the number of jobs
●Improve accuracy - Implement closed-loop control of position, speed and torque to overcome the problem of inch-in
●Adaptability - strong anti-overload capability, instantaneous load fluctuation

product-description6

Characteristic

●The best conditions of various mold specifications in order to achieve a molding products.
●The high rigidity of the basic structure provides stable and reliable cold forging.
●Advanced automated configuration will help the industry to improve production efficiency. Reduce costs, and increase profits.
●The design and implementation of the punch and workpiece slide mold meet processing all kinds of special items.
●It has a compact structure and has a "anti-damage" insurance agency.
●The mechanism of nut machine is easy to assemble, with strong jacking force and easy adjustment.

Optional Configuration

1. Single speed,double speed of servo motor.
2. The feeding device improves the feeding precision.
3. Inverter, stepless speed regulation in a certain range
4. The power unit is equipped with a pneumatic clutch to reduce shock and start current, and to protect the electrical and motor.
5. PKO
6. Bearing standard type.
7. Lengthening of copper sleeve.

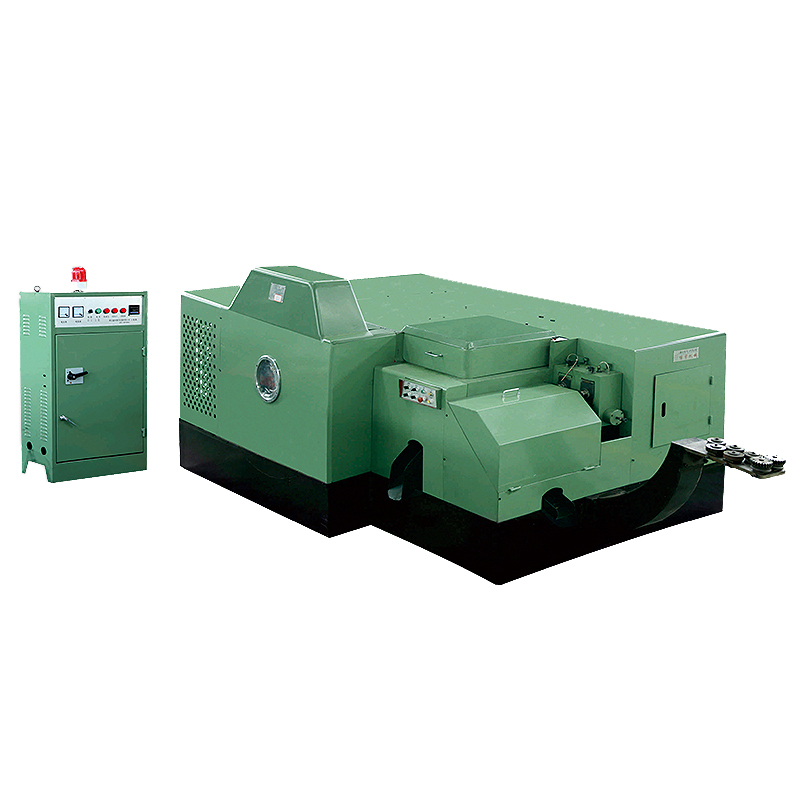

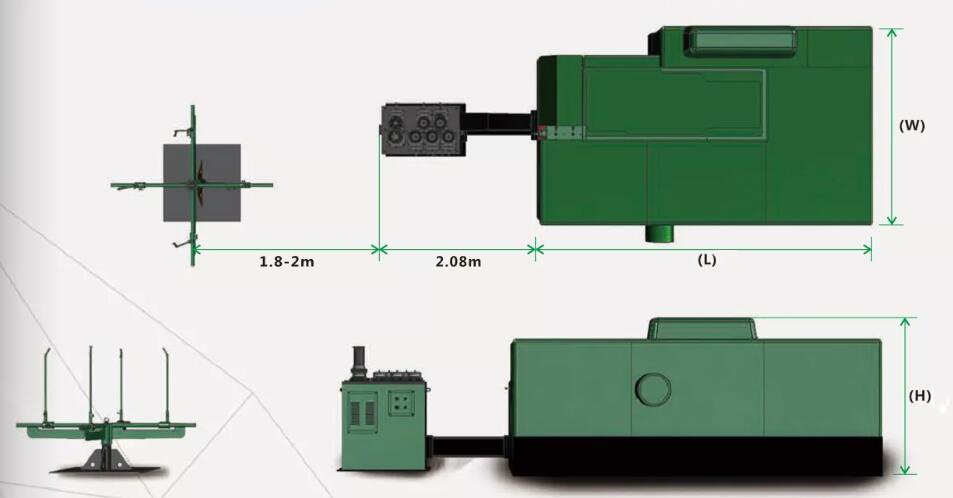

BOYU cold heading machine for nut making 11B-17B

7.28 4

7.21 3



Item

11B

12B20L

14B25L

14B30L

17B25L

17B30L

17B35L

11B20LT

11B40LT

11B50LT

12B20LT

14B25LT

14B30LT

14B40LT

14B60LT

14B80LT

17B25LT

17B30LT

17B40LT

17B70LT

Forging station(mm)

6s

6s

6s

6s

6s

6s

6s

6s

6s/7s

6s/7s

6s

6s

6s

6s/7s

6s/7s

6s/7s

6s

6s

6s/7s

6s/7s

Max. cut-off diameter(mm)

11

12

14

14

17

17

17

11

11

11

12

14

14

14

14

14

17

17

17

17

Cut-off length(mm)

3.3 ~ 22

3.3 ~ 22

5 ~ 25

7 ~ 32

6 ~ 25

6 ~ 31

7.5 ~ 37

3.3 ~ 22

6 ~ 40

8.5 ~ 54

3.3 ~ 22

5 ~ 25

7 ~ 33

10.2 ~ 42

11.6 ~ 63

23 ~ 85

6 ~ 25

6 ~ 31

8 ~ 41.5

17.5 ~ 73

Kick-Out Length(mm)

27

28

33

39

33

40

45

27

44

58

27

33

39

46

70

90

33

40

46

80

Center Distance(mm)

50

50

60

60

70

70

70

50

50

50

50

60

60

60

60

60

70

70

70

70

Forging Power(Ton)

65

75

90

90

120

120

120

65

65

65

65

90

120

120

120

120

140

140

200

200

Main motor(HP)

15

15

30

30

30

30

30

15

15

15

15

30

30

30

30

30

30

30

40

40

Oil consumption (about 200L per barrel)

No.8 or No.10 cold heading oil

800L

800L

1000L

1000L

1200L

1200L

1200L

800L

800L

800L

800L

1000L

1000L

1000L

1000L

1000L

1200L

1200L

1200L

1200L

Machinery weight(Ton)

4.5T

6T

8.5T

9T

11.5T

11.5T

11.5T

4.5T

6T/6.5T

6T/6.5T

6T

8.5T

9T

9.5T/10T

10T/10.5T

10.5T/11T

11.5T

11.5T

12T/12.5T

12.5T/13T

Size(m)

L

2.5

2.8

3

3.3

3.6

3.6

3.6

2.5

2.8

2.87

2.8

3

3.3

3.3

3.5

3.9

3.6

3.6

3.7

4.1

W

1.6

1.6

2

2.2

2.2

2.2

2.2

1.6

1.62

1.62

1.62

2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.3

H

1.2

1.2

1.5

1.8

1.8

1.8

1.8

1.2

1.2

1.2

1.2

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

Please note:As required customizable.

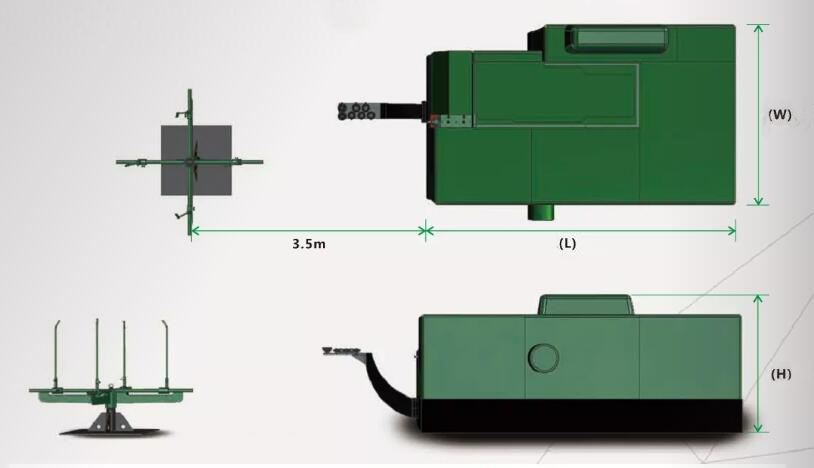

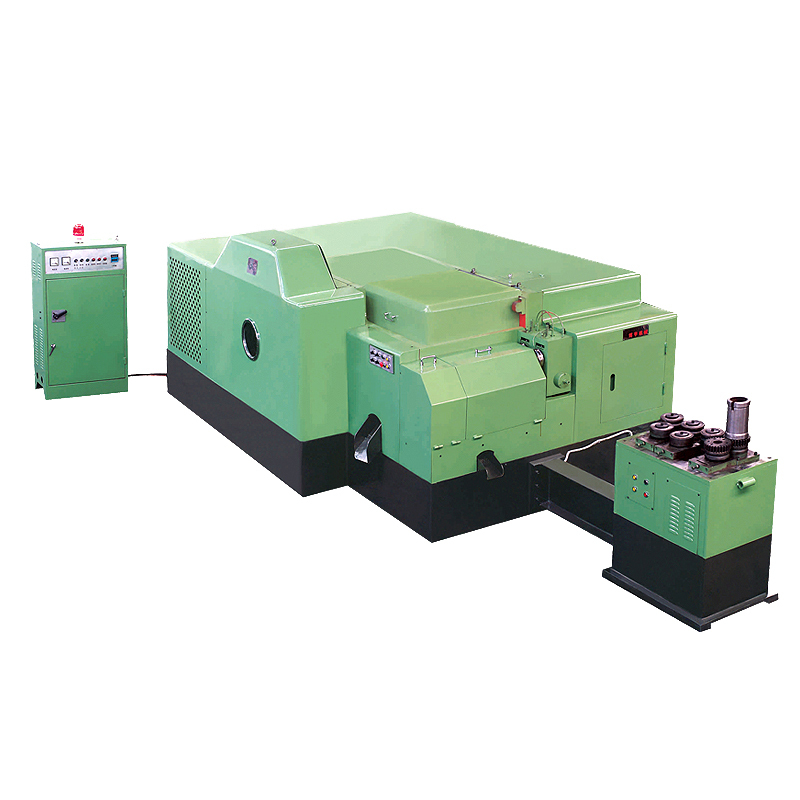

BOYU cold forming machine for nut making 19B-60B

7.28 37.22 9

Item

19B6S

19B40LT

19B60LT

19B80LT

22B30LT

22B60LT

24B30LT

24B40LT

24B60LT

24B80LT

27BT

27B60LT

27B90LT

33B50LT

33B100LT

33B150LT

41B60LT

50B

Forging station(mm)

6s

6s

6s/7s/9s

6s/7s

6s

6s

6s

6s

6s/7s

6s/7s

6S

6S

6s/7s

6S

6S

7S

6S

6S

Max. cut-off diameter(mm)

19

19

19

19

22

22

24

24

24

24

27

27

27

33

33

33

41

40

Cut-off length(mm)

10 ~ 28

10 ~ 42

14.2 ~ 62

28 ~ 84

12 ~ 33

25 ~ 70

14 ~ 32

16 ~ 40

25 ~ 68

30 ~ 85

14.7 ~ 32

26 ~ 68

30 ~ 93

12 ~ 54

34 ~ 102

40 ~ 160

15 ~ 68

60

Kick-Out Length(mm)

35

50

70

91

40

72

39

46

70

90

40

70

98

60

108

162

75

60

Center Distance(mm)

80

80

80

80

90

90

100

100

100

100

110

110

110

140

140

140

165

200

Forging Power(Ton)

200

200

260

260

270

270

280

280

300

300

300

300

330

330

350

400

600

860

Main motor(HP)

40

40

60

60

60

75

60

60

100

100

100

100

125

180

220

272

272

272

Oil consumption (about 200L per barrel)

No.8 or No.10 cold heading oil

1600L

1600L

1600L

1600L

2000L

2000L

2600L

2600L

2600L

2600L

3200L

3200L

3200L

4800L

4800L

4800L

5600L

8200L

Machinery weight(Ton)

16T

18.5T

19T/21T/30T

19.5T/21T

22T

23T

26T

26.2T

32T/34T

34T/37T

33T

35T

39T/43T

49T

70T

80T

87T

118T

Size(m)

L

3.8

3.8

4.7

4.9

4.4

5

4.8

4.8

5.4

5.6

5

5.3

5.5

5.7

6.7

7.4

6.6

8.8

W

2.3

2.3

2.4

2.4

2.4

2.5

2.8

2.8

2.9

2.9

2.8

2.8

3

3.4

3.6

3.9

3.5

4.5

H

1.9

1.9

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.3

2.4

2.4

2.5

2.5

2.5

2.6

2.7

3.2

Please note:As required customizable.
