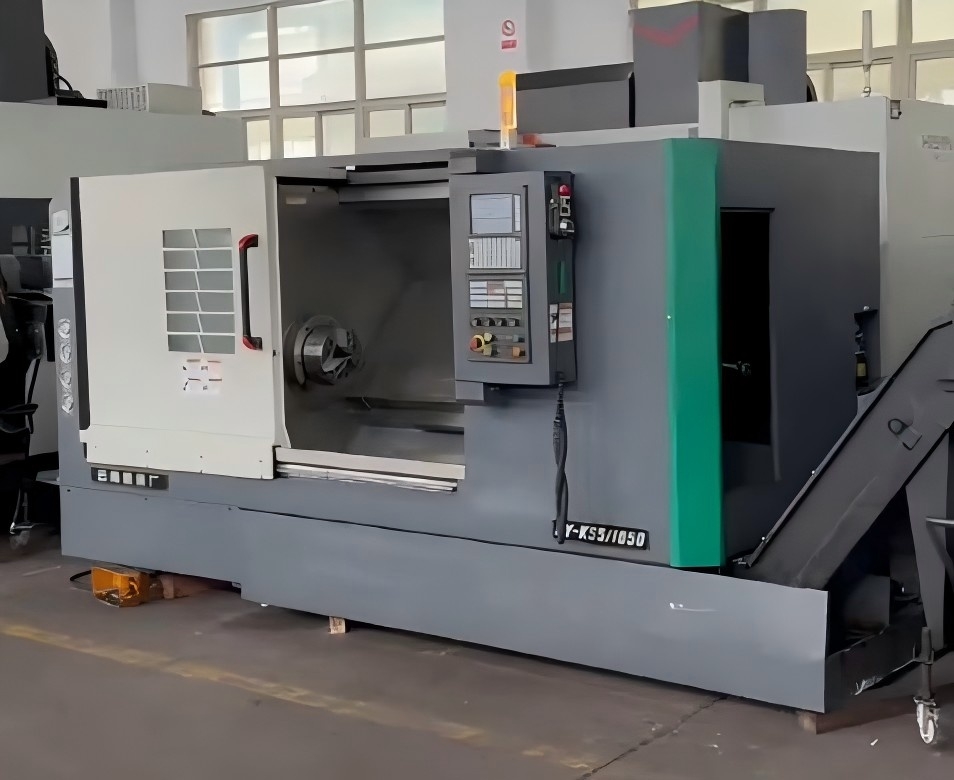

Advanced Cy-K55my Series Linear Y-Axis CNC Turn-Mill Machine
|
Project
|
unit
|
CY-K55mY
|
||
|
processing range
|
bed structure
|
45°
|
||
|
Maximumswing over bed
|
mm
|
φ550
|
||
|
maximum cutting diameter
|
disc
|
mm
|
φ360
|
|
|
shaft
|
mm
|
φ320
|
||
|
machine load capacity
|
disc
|
kg
|
200
|
|
|
shaft
|
kg
|
500
|
||
|
maximum cutting length
|
mm
|
400/900/1400/1900/2900
|
||
|
spindle
|
spindle Nose type and code
|
A2-6
|
||
|
Taper of Spindle Front Bore
|
φ70, 1:20
|
|||
|
spindle hole diameter
|
mm
|
φ62
|
||
|
Maximum Bar Diameter Capacity
|
mm
|
φ50
|
||
|
spindle speed range
|
r/min
|
50~3500
|
||
|
spindle maximum output torque
|
N·m
|
190
|
||
|
spindle speed stages
|
servo stepless
|
|||
|
main motor
|
rated power
|
kW
|
11
|
|
|
30min overload
|
kW
|
15
|
||
|
standard chuckDiameter
|
inch
|
8
|
||
|
X/Z axis fast moving speed
|
m/min
|
24/24
|
||
|
X-axis travel
|
mm
|
250
|
||
|
y-axis travel
|
mm
|
±50
|
||
|
z-axis travel
|
mm
|
550/1050/1550/2050/3050
|
||
|
tool holder
|
form
|
horizontal 12-station power turret
|
||
|
tool size
|
External Turning Tool
|
mm
|
25×25
|
|
|
boring bar
|
mm
|
φ40
|
||
|
tailstock
|
sleeve diameter
|
mm
|
φ75
|
|
|
Sleeve stroke
|
mm
|
100
|
||
|
taper Boretaper
|
Mohs
|
MT5
|
||
