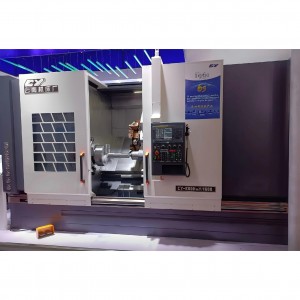

Precision Cy-K100h Turret Lathes for Efficient Metalworking Solutions

The machine adopts a 45° inclined bed base structure, which facilitates chip removal.
It features a heavy-duty box-way design to meet high rigidity requirements.
The spindle unit has undergone dynamic balancing and running-in, significantly improving spindle thermal stability and reducing abnormal noise at high speeds.
The fully enclosed guard makes it suitable for machining various shaft-type components in industries such as automotive parts, aerospace, and military manufacturing.


Product Detail

Product Tags

project
unit
CY-K100H

processing range
bed structure
45°
maximum swing over bed
mm
Φ1000
Maximumcuttingdiameter
disc
mm
Φ1000
axis
mm
φ800
maximum cutting length
mm
1500/2000/3000/4000
spindle
Spindle Nose Type and Code
A2-15
Spindlehole diameter
mm
Φ130
Maximum Bar Diameter
mm
Φ116
spindle speed range
r/min
50~750
spindle speed stages
servo stepless
main motor
rated power
kW
22
30min overload
kW
30
standard chuck diameter
inch
15
X/Z axis fast moving speed
m/min
10/12
X axis travel
mm
570
Z-Axis Travel
mm
1600/2100/3100/4100
tool post
form
horizontal 8-station servo turret
tool size
external tool
mm
32×32
boring tool bar
mm
φ50
tailstock
sleeve diameter
mm
φ150
sleeve stroke
mm
150
taper hole taper
Mohs
MT6Rotating Spindle Center
accuracy implementation standard
GB/T16462-2023 “CNC latheAnd Turning center Inspection Conditions” standard
