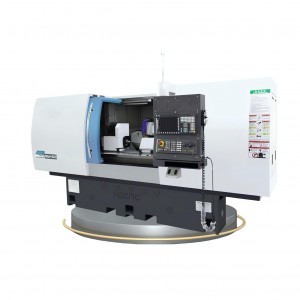

Precision Mgk1332 CNC Cylindrical Grinding Machine for Metal Fabrication
|
Description
|
Unit
|
MGK1332
|
|
General Capacity
|
||
|
Max.length grinding(O.D)
|
mm
|
1000/1500
|
|
Center height
|
mm
|
180
|
|
Dia.grinding(O.D)
|
mm
|
8-320
|
|
Max. weight of workpiece
|
kg
|
100
|
|
Workhead
|
||
|
Center taper
|
MT
|
5
|
|
Spindle speed(stepless)
|
r/min
|
35-350
|
|
Wheelhead
|
||
|
Max. dimension of wheel(O.D*W*I.D)
|
mm
|
500*80*203
|
|
Wheel peripheral velocity
|
m/s
|
45
|
|
Min.set unit
|
mm
|
0.0001
|
|
Worktable
|
||
|
Max. swiveling angle of table
|
°
|
3(750)
|
|
°
|
7(1000)6(1500)
|
|
|
Tailstock
|
||
|
Center taper
|
MT
|
4
|
|
Quill manually travel
|
mm
|
30
|
|
Electric system
|
||
|
CNC system
|
Standard :Siemens 828Optionals:Fanuc 0I
|
|
|
Wheelhead motor power
|
Kw
|
7.5
|
|
Workhead motor power
|
Kw
|
1.5
|
|
Machining Accuracy
|
||
|
Roundness
|
μm
|
0.5
|
|
Cylindricity
|
μm
|
3
|
|
Roughness
|
μm
|
Ra 0.04
|
|
Machine
|
||
|
Weight
|
kg
|
6700(1000)7700(1500)
|
|
Package dimension(L*W*H)
|
cm
|
460*250*228(1000)560*250*228(1500)
|
