China Yunnan Machine Tool Works Manufacturer – SHENYANG(SMTCL) VMC Q Series Vertical Machining Center – Maiouke
China Yunnan Machine Tool Works Manufacturer – SHENYANG(SMTCL) VMC Q Series Vertical Machining Center – Maiouke Detail:
Specification
|
Item |
Unit |
VMC 850Q |
VMC 1000Q |
VMC 1100Q |
|
| Table | |||||
|
Table size |
mm |
1000×500 |
1150×500 |
1300×610 |
|
|
Max.allowed loading |
kg |
600 |
600 |
1000 |
|
|
T slot size |
mm×N |
18×5 |
18×5 |
18×5 |
|
| Machining range | |||||
|
X axis travel |
mm |
850 |
1000 |
1100 |
|
|
Y axis travel |
mm |
500 |
500 |
620 |
|
|
Z axis travel |
mm |
540 |
540 |
600 |
|
|
Distence between |
Max. |
mm |
660 |
660 |
720 |
|
Min. |
mm |
120 |
120 |
120 |
|
|
Distence between spindle center to guideway surface |
mm |
640 |
640 |
743 |
|
| Spindle | |||||
|
Taper (7:24) |
- |
BT40 |
BT40 |
BT40 |
|
|
Speed |
r/min |
10000 |
10000 |
10000 |
|
|
Torque |
N.m |
35.8/70 (S2 15Minutes) |
35.8/70 (S2 15Minutes) |
35.8/70 (S2 15 Minutes) |
|
|
Main motor power |
kW |
7.5/11 |
7.5/11 |
7.5/11 |
|
|
Drive type |
- |
Synchrono us belt |
Synchrono us belt |
Synchrono us belt |
|
| Tooling | |||||
|
Tool holder |
- |
MAS 403 BT40 |
MAS 403 BT40 |
MAS 403 BT40 |
|
|
Pull stud |
- |
MAS 403 40BT- 1 |
MAS 403 40BT- 1 |
MAS 403 40BT- 1 |
|
| Feed | |||||
|
Rapid feed |
X axis |
m/min |
48 |
48 |
48 |
|
Y axis |
m/min |
48 |
48 |
48 |
|
|
Z axis |
m/min |
48 |
48 |
48 |
|
|
Motor power(XYZ) |
kW |
1.8/1.8/3 |
1.8/1.8/3 |
3/3/3 |
|
|
Motor torque(XYZ) |
Nm |
11/11/20 |
11/11/20 |
20/20/20 |
|
|
Feeding speed |
mm/min |
1-20000 |
1-20000 |
1-20000 |
|
| Toot Magazine | |||||
|
Type |
- |
Robot |
Robot |
Robot |
|
|
Tool collection |
- |
Nearest tool selection |
Nearest tool selection |
Nearest tool selection |
|
|
Magazine capacity |
- |
24 |
24 |
24 |
|
|
Max.tool length |
mm |
300 |
300 |
300 |
|
|
Max.tool weight |
kg |
7 |
7 |
7 |
|
|
Max.tool disk dia. |
Full |
mm |
Φ80 |
Φ80 |
Φ80 |
|
Nearby |
mm |
Φ150 |
Φ150 |
Φ150 |
|
|
Tool change time |
s |
2.5 |
2.5 |
2.5 |
|
|
Distence between table to ground |
mm |
880 |
880 |
950 |
|
|
Machine weight |
kg |
5100 |
5400 |
6200 |
|
|
Electricity capacity |
KVA |
18 |
18 |
25 |
|
|
Overall Dimensions (L×W×H) |
mm |
2400×2560×2700 (without conveyor) |
2700× 2560 × 2700 (without conveyor) |
2940× 3450×3050 (without conveyor) |
|

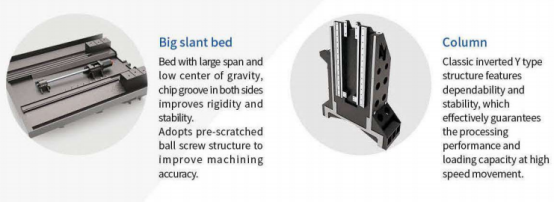

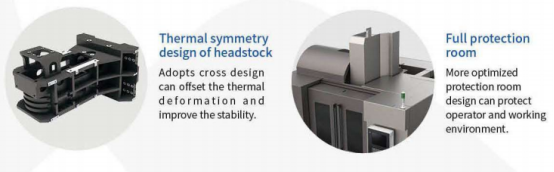

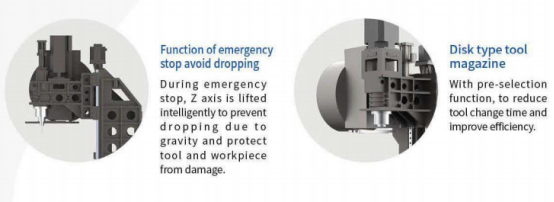

Characteristic

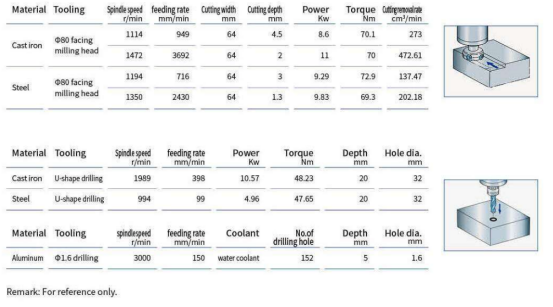

Samples
Factory Tour
