China Worm Milling Machine Supplier – SHENYANG(SYMG) TPX DRO Horizontal boring milling machine TPX6111B TPX6113 – Maiouke Detail:
Specification
|
Item |
Unit |
TPX6111B/2 |
TPX6111B/3 |
TPX6113 |
TPX6113/2 |
|
|
Spindle |
Diameter |
mm |
110 |
110 |
130 |
130 |
|
Taper |
- |
Morse No6 (ISO7:24No50) |
Morse No6 (ISO7:24No50) |
Metric 80 (ISO7:24No50) |
Metric 80 (ISO7:24No50) |
|
|
Max Torque |
N.m |
1225 |
1225 |
3136 |
3136 |
|
|
Max Axial Thrust |
N |
12250 |
12250 |
31360 |
31360 |
|
|
Speed Settings |
- |
22 |
22 |
24 |
24 |
|
|
Speed Range |
r/min |
8-1000 |
8-1000 |
4-800 |
4-800 |
|
|
Main Motor Power |
kW |
7.5 |
7.5 |
15 |
15 |
|
|
Facing Plate |
Max Torque |
N.m |
1960 |
1960 |
4900 |
4900 |
|
Diameter |
mm |
600 |
600 |
750 |
750 |
|
|
Speed Range |
r/min |
4-200 |
4-200 |
2.5-125 |
2.5-125 |
|
|
Speed Settings |
- |
18 |
18 |
18 |
18 |
|
|
Worktable |
Dimensions |
mm |
1100×960 |
1250×1100 |
1600×1400 |
1800×1600 |
|
Max Load |
kg |
5000 |
5000 |
8000 |
10000 |
|
|
T-slot Size |
mm |
22 |
22 |
28 |
28 |
|
|
T-slot Count |
— |
7 |
7 |
9 |
11 |
|
|
Machining Range |
X-axis Max Travel |
mm |
1250 |
1600 |
1600 |
2000 |
|
Y-axis Max Travel |
mm |
900 |
1200 |
1400 |
1800 |
|
|
Z-axis Max Travel |
mm |
1400 |
1400 |
2000 |
2000 |
|
|
W-axis Max Travel (Spindle) |
mm |
600 |
600 |
900 |
900 |
|
|
U-axis Max Travel (Facing Plate Slide) |
mm |
180 |
180 |
250 |
250 |
|
|
B-axis Rotary Angle |
° |
360 |
360 |
360 |
360 |
|
|
Min Distance Between Spindle Centerline and Worktable |
mm |
0 |
0 |
0 |
0 |
|
|
Feed |
Rapid Traverse |
mm/min |
X/Y/Z/W:2500 |
X/Y/Z/W:2500 |
X/Y/Z/W:2500 |
X/Y/Z/W:2500 |
|
Feed range of axes for each spindle revolution |
mm/rev |
0.04-6/0.01-1.88 (X/Y/Z/W) |
0.04-6/0.01-1.88 (X/Y/Z/W) |
0.05-8/0.01-2 (X/Y/Z/W) |
0.05-8/0.01-2 (X/Y/Z/W) |
|
|
Speed Range (X) |
mm/min |
- |
- |
- |
- |
|
|
Accuracy |
Linear Measurement Reading Accuracy (X/Y/Z-axis) |
mm |
0.005 |
0.005 |
0.005 |
0.005 |
|
Linear Measurement Reading Accuracy (B-axis) |
° |
0.001 |
0.001 |
0.001 |
0.001 |
|
|
General Specs |
Dimensions (L×W×H) |
mm |
4910×2870×2750 |
5028×3359×3079 |
6995×3647×3442 |
7030×4665×3800 |
|
Machine Weight |
kg |
13000 |
14000 |
24000 |
28000 |
|

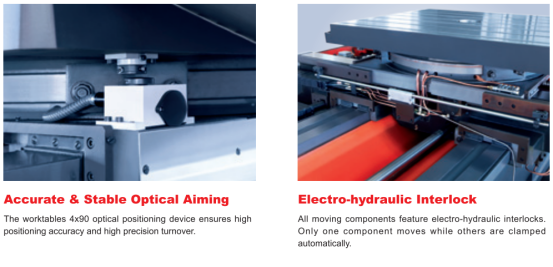

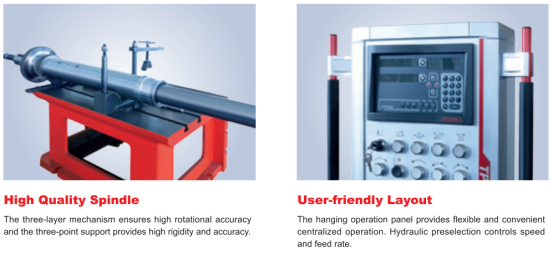

Characteristic

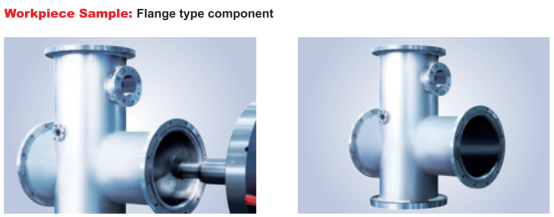

Product detail pictures:
