China CNC Lathe CY-K510N – SHENYANG(SMTCL) CAK 36/40/50/63 Series CNC Lathe – Maiouke Detail:

Specification

Item	Unit	CAK3635j	CAK4065	CAK63
Max parts length	mm	400	750	1000
Max cutting length	mm	350	650	850
Max swing diameter over bed	mm	Φ400	Φ400	Φ630
Max cutting diameter over slide	mm	Φ180	Φ200	Φ350
Max cutting diameter	mm	Φ360	Φ400	Φ630
Spindle nose type	-	A₂6	A₁6	A₂-11
Chuck diameter	mm	Φ200	Φ250	Φ315
Spindle bore	mm	Φ53	Φ53	Φ104
Spindle speed grade	-	Stepless	Stepless	Hydralic 4 steps less in each
Spindle speed range	r/min	100-3000	100-2400	17-1000
Main motor power	ke	3.7(Main servo motor)	5.5(Main servo motor)	11(Main servo motor)
Tailstock quill diameter	mm	Φ60	Φ60	Φ125
Tailstock quill travel	mm	140	140	250
Turret type	-	Vertical 4-postion	Vertical 4-postion	Vertical 4-postion
Tool shank size	mm	□20×20	□20×20	□32×32
X/Z axis fast travel	m/min	6/12	6/12	6/10
Machining accuracy	-	IT6~IT7	IT6~IT7	IT6~IT7
Machine weight	kg	1860	1860	5200
Overall dimension	mm	1840×1500×1500	2350×1500×1580	3410×2010×1780

Characteristic

●Nice appearance – Fluent and easy clean
●Powerful heart – Effective and stable
●Strong body – Heavy and strong
●Smart brain – Customized controller
●33Hz high efficiency-servo motor low energy-big torque improve efficiency
●Fast travel improved
●Surface quality improved
●Absolute encoder redeced fault
●Shorter accelerate and decelerate time
●Parameter change visual fault diagnosis

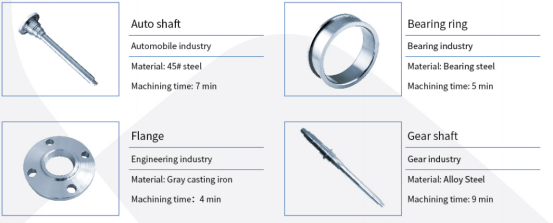

Sample
