SHENYANG(SMTCL) High precision Slant bed lathe T3 Series

Product description:

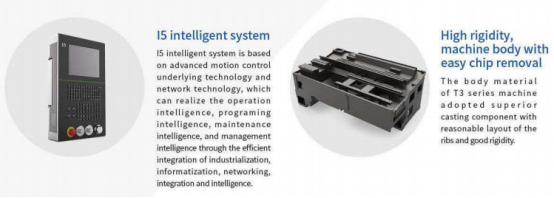

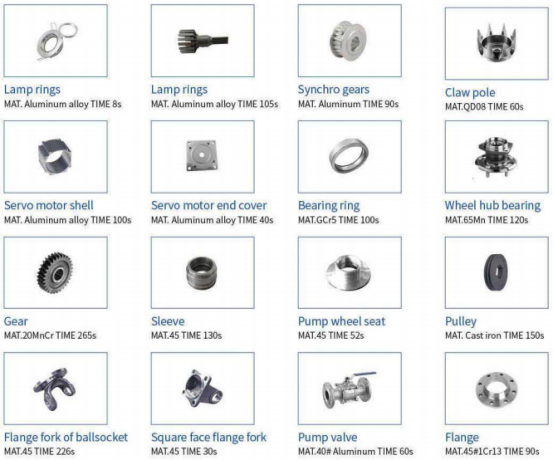

SHENYANG(SMTCL) T3 Series Horizontal CNC Lathe equipped with I5 intelligent CNC system with independent intellectual property rights (Optional FANUC GSK Siemens), broadly applied in bearing, gear, automotive, hydraulic, pump/valve and general industry.

Using finite element software to realize the structure analysis of the whole machine and improve its rigidity.

Send email to us Download as PDF

Product Detail

Product Tags

Specification

Item	Unit	T3.3-350	T3.3-500	T3.5- 500
Machining range
Max turning diameter	mm	Φ360	Φ360	Φ500
Max turning length	mm	350	500	500
Max swing diameter over bed	mm	Φ580	Φ580	Φ580
Max swing diameter over slide	mm	Φ360	Φ330	Φ320

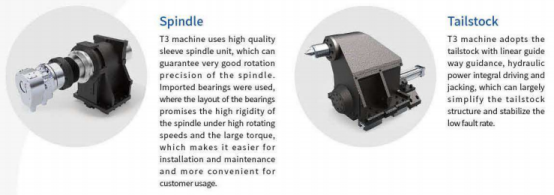

Spindle
Spindle nose type		A2-6	A2-6	A2-8
Diameter of front bearing	mm	100	100	120
The taper of front end of spindle, taper hole		1:20;Φ70	1:20;Φ70	1:20;Φ90
Spindle hole diameter	mm	Φ65	Φ65	Φ80
Diameter of chuck	inch	8	8	10
Max spindle speed	r/min	4000	4000	3500
Spindle rated torque	Nm	157.5 (666r/min)	157.5 (666r/min)	243(588r/min)
Max. spindle torque	Nm	215 (666r/min)	215 (666r/min)	300 (588r/min)
Main motor output power Continuous/30 minutes	kW	11/15	11/15	15/18.5
Axes
X/Z axis rapid traverse	m/min	30	30	24
X axis travel	mm	200	200	260
Z axis travel	mm	350	510	505
Tailstock
Tailstock body travel	mm	-	400	400
Tailstock taper	Morse	-	MT-5	MT-5

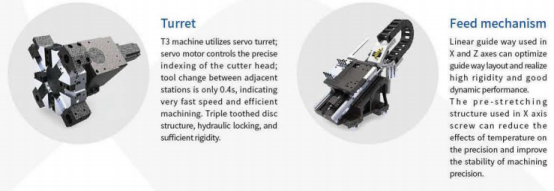

Turret
Turret mode		Horizontal servo turret with 8-position	Horizontal servo turret with 8-position	Horizontal servo turret with 8-position
Center height of turret	mm	80	80	100
Repeatability of turret indexing	Sec.	±1.6	±1.6	±1.6
Others
Machine net weight	kg	3300	3600	3700
Overall machine dimension (LXWXH)	mm	2330×1675×1760	2550×1675×1760	2550×1675×1820
Optional: Control system,Turret,Chip removal system,Chunk,Hydraulic station,Tool detection , Automatic line configuration,Chip breaking,Blow
